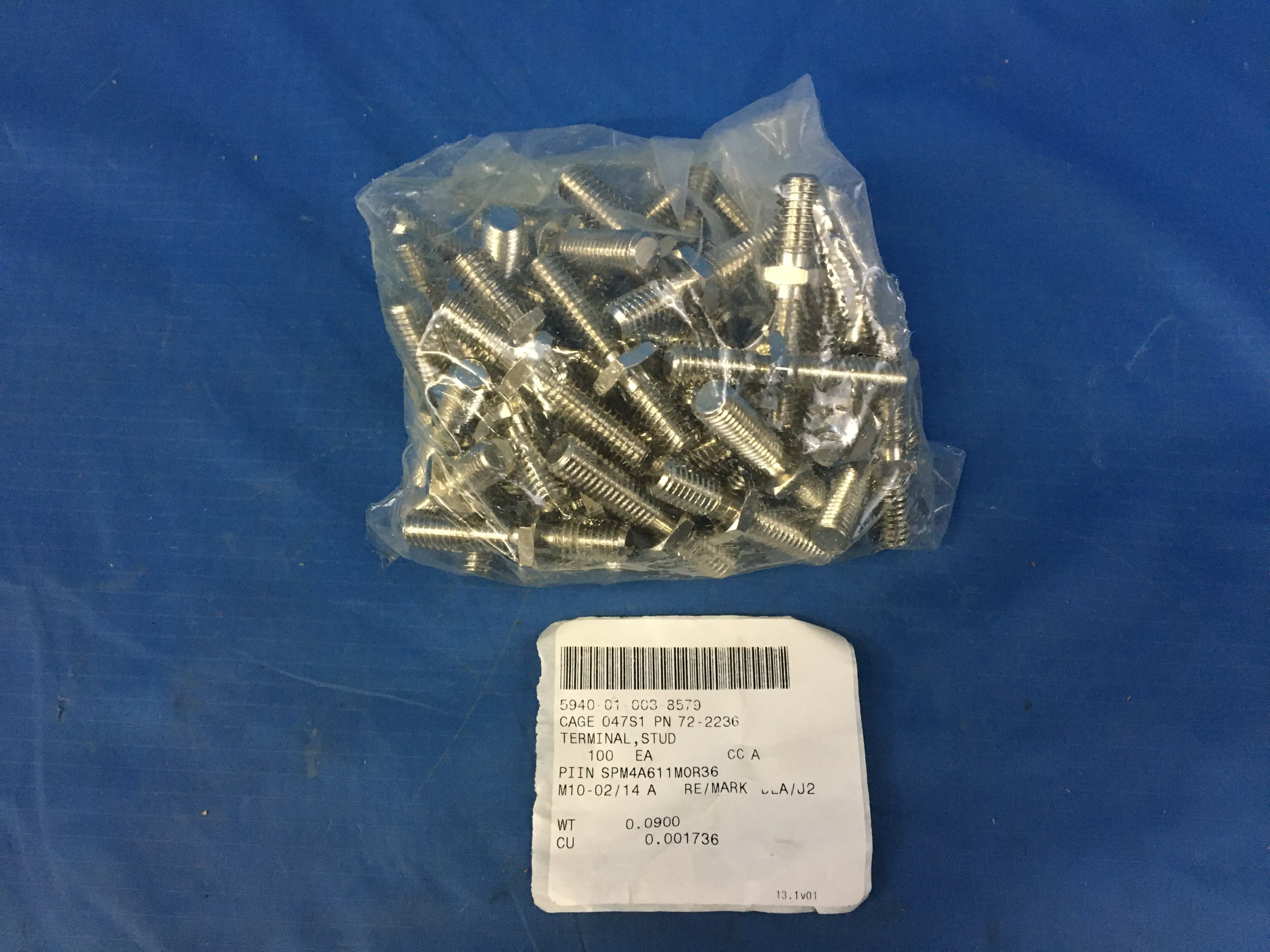

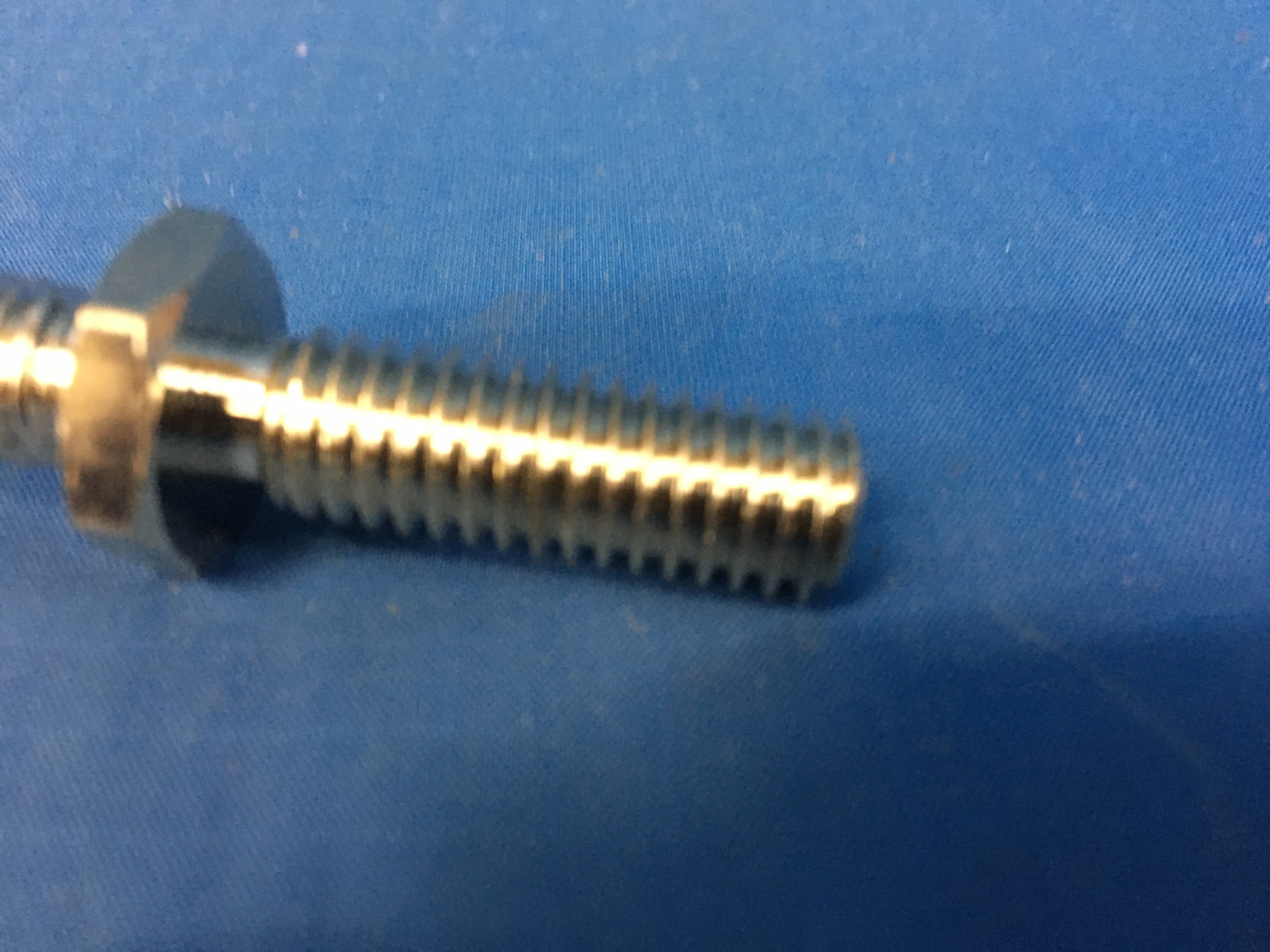

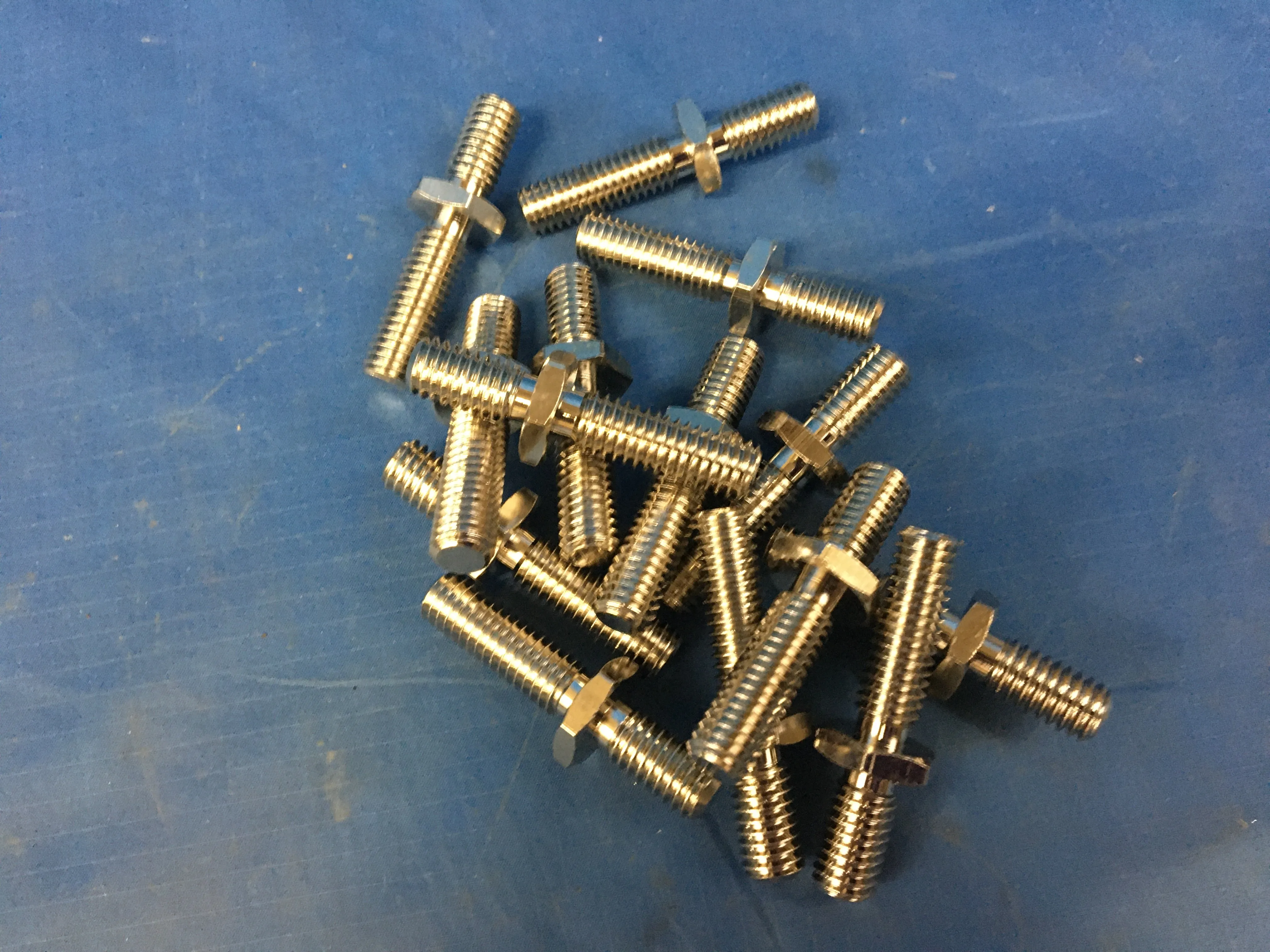

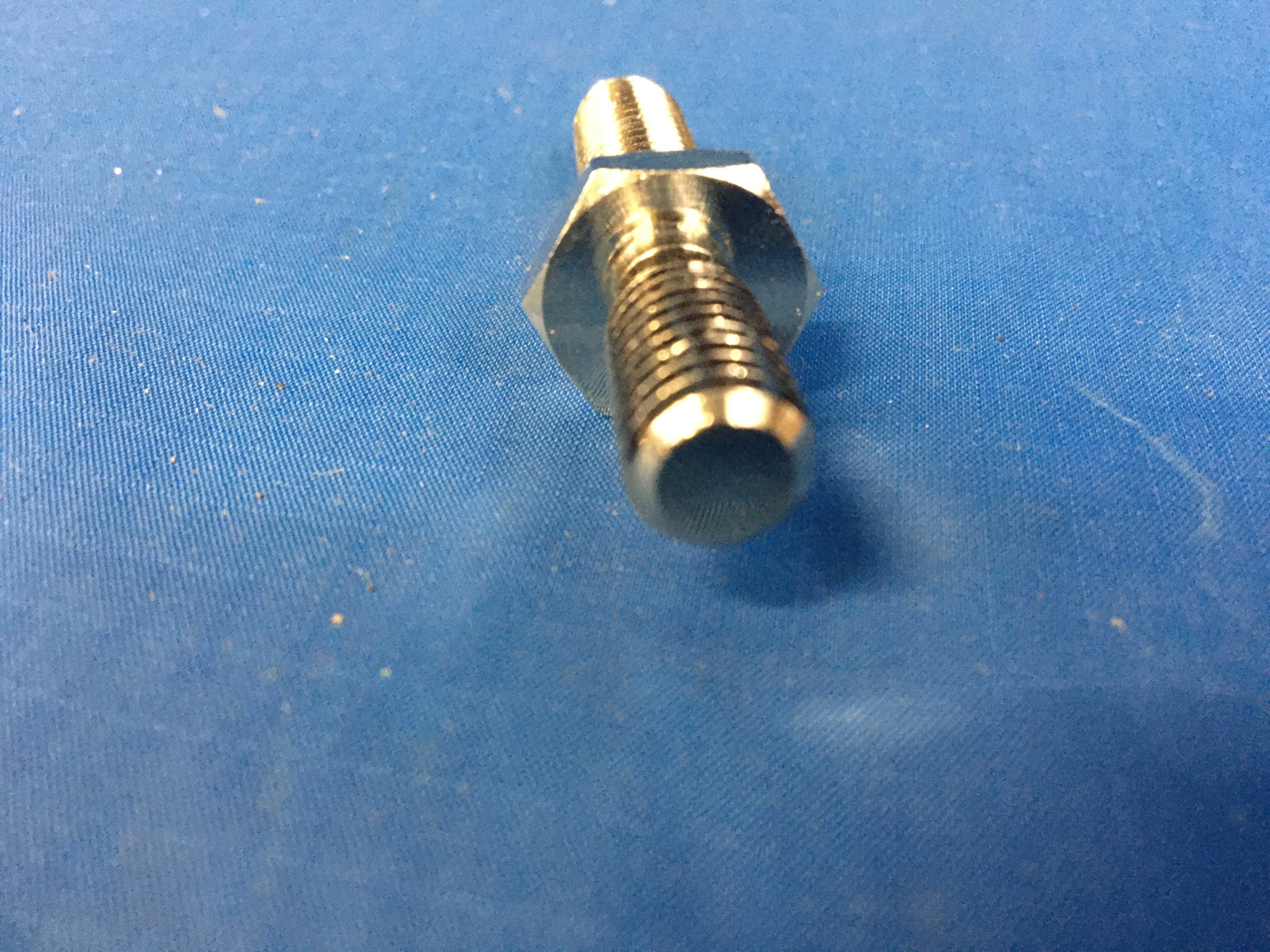

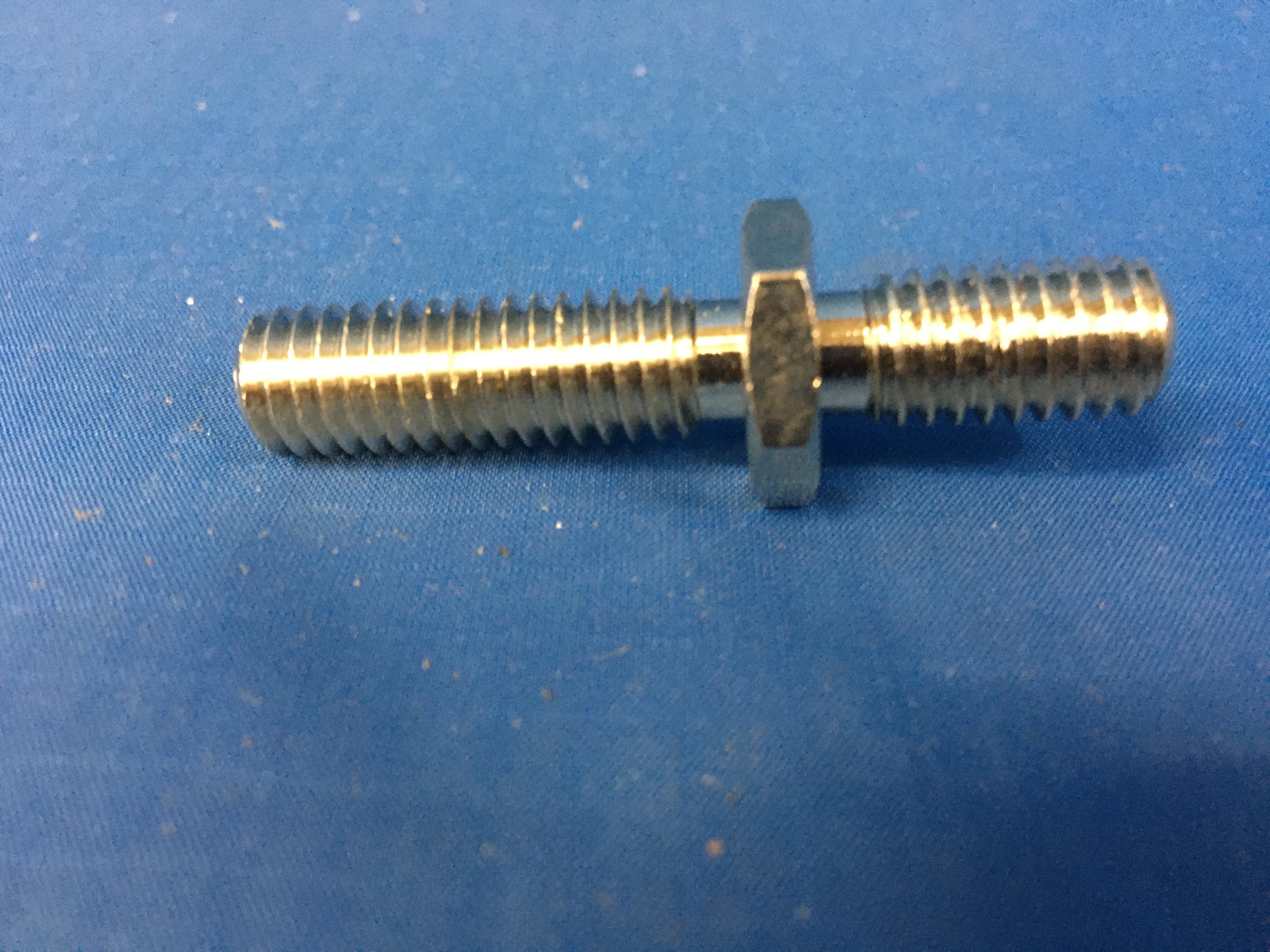

Stud Terminal
NSN: 5940-01-003-8579 | Model: 72-2236A terminal, generally postlike, having an axial portion of its body designed for projecting through or into a panel, or the like, for mounting. Requires the use of too (s) for attachment of wire. The conductor connection may be insulated from the mounting. Excludes terminal, feedthru. See also terminal, quick disconnect and terminal set, quick disconnect.
NSN Properties and Flags
NATO Stock Number
5940-01-003-8579
DEMIL
Yes - ITAR Controlled
Terminal Length
1.190 inches
Width Across Flats
0.625 inches
Overall Height
2.096 inches
Thru-hole Diameter
0.040 inches
Electrical Insulation Feature
Uninsulated
Mounting Method Style
Stud
Mounting Thread Diameter
0.375 inches
Thread Length
0.750 inches
Basic Shape Style
Nontubular, hex
Mounting Thread Series
Unc
Mounting Thread Quantity
16 per inch
Conductor Accommodation Type
Threaded external single end
Material
Copper alloy conductor accommodation
Surface Treatment
Nickel mounting facility single layer
Surface Treatment Specification
Qq-n-290, cl 2 federal specification single treatment response mounting facility single layer
