Features:
- Bright Tin Finish
- Nickel-plated Nut Hardware
- 0.010Ω Maximum Contact Resistance
- Keyed Mounting with Double Flats
- Accepts up to 16 Gauge Wire
- Nylon UL approved for self extinguishing
Specifications:

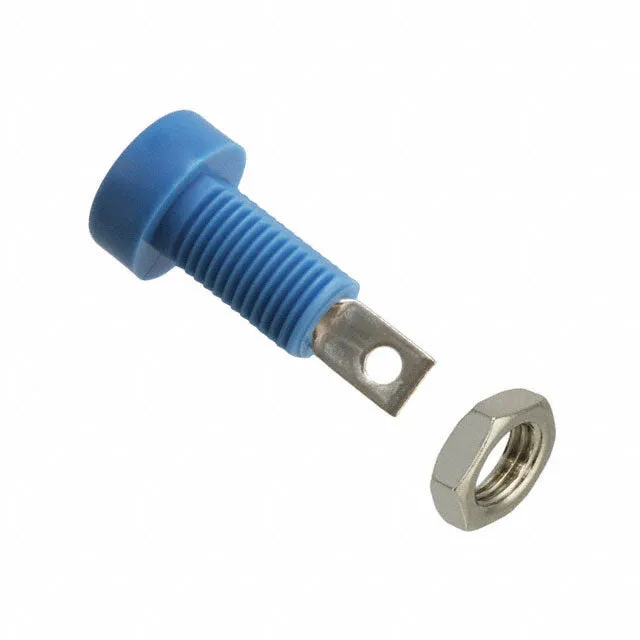

- Type: Banana Jack
- Gender: Female
- Plug/Mating Plug Diameter: Standard Banana
- Mounting Type: Panel Mount
- Termination: Solder Tabs
- Insulation: Mating End Insulated
- Color: Blue
- Wire Gauge: 12 AWG
- Contact Finish: Nickel
- Contact Material: Brass
- Operating Temperature: -55°C ~ 85°C
- Contact: Formed brass per QQ-B-626D
- Finish: Bright tin
- Body: Nylon 6/6 per ASTM D4066
- Hardware: Nickel plated nut (unassembled)
- Body Thread Stripping Torque: 6.0 lb. in. (7kg. cm.)

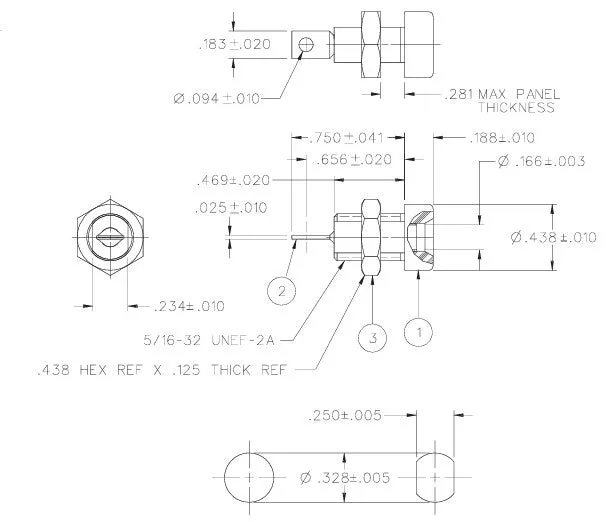

- Panel Thickness: Up to .343 (8.80)
Ratings:
- Current: 15 amps
- Breakdown Voltage: 7000 Vrms minimum
- Contact Resistance: 0.010 ohms maximum
- Contact-To-Panel: 2.4 pF nominal
